Material Performance Matrix

Nitinol (NiTi) Core Platform

Provides unmatched superelasticity and shape memory. Ideal for highly tortuous anatomy, preventing permanent kinking while maintaining shapeable distal core mandrels for superior tip control.

Stainless Steel 304 (SS304) Platform

Offers superior column strength, maximal pushability, and exceptional tensile hardness. Perfectly suited for the proximal shaft sections of interventional wires to guarantee high crossability and force transmission.

Technical Specifications & Custom Capabilities

Technical Parameter	Standard Offering Range	OEM Customization Capabilities
Core Wire Diameter	0.005" - 0.038" (0.127 mm - 0.965 mm)	Ultra-fine grinding down to 0.002"
Diameter Tolerance	Standard: ±0.0002" (±0.005 mm)	Ultra-precision down to ±0.0001" (±0.0025 mm)
Base Material Options	Superelastic Nitinol, Medical SS304 / SS304V	Specific tensile strength/hardness custom tuning
Grinding Geometry	Continuous tapers, multi-step configurations	Parabolic, flat ribbon, or custom blueprint grinds

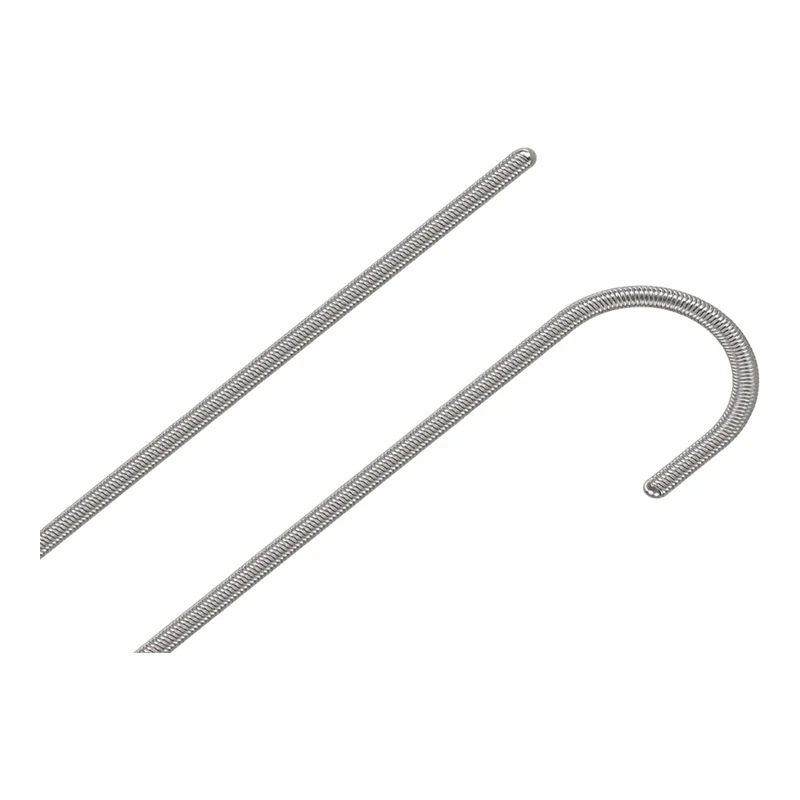

Tip Profile	Straight blunt tip, Pre-shaped J-tip	Tailored distal core shape memory retention
Coil Configuration	Precision wound spring coil overlay	Custom pitch, radiopaque integration, custom lengths

Core Engineering Advantages

Advanced Continuous Centerless Grinding

Using advanced CNC centerless grinding equipment, we achieve step-less, continuous geometric reductions along the core wire taper. This precise manufacturing control eliminates abrupt stress concentration points, ensuring a flawless 1:1 torque transmission from the proximal shaft to the distal tip.

Optimized for Coating Adhesion & Coil Integration

As highlighted by the clean metallic micro-coils in image d361b1c59424ffa1cd300b40c489c7a8.png, our wire surfaces undergo precise mechanical and electrochemical finishing. This ultra-smooth and uniform substrate provides excellent structural anchoring for outer protective coils and advanced hydrophilic, PTFE, or silicone coating applications.

Comprehensive ISO 13485 Compliance & Traceability

Every single batch of our Guide Wire and Core Wire components is processed in certified clean environments. We provide complete material heat traceability, dimensional logging protocols, and microscopic inspection reporting to meet international regulatory standards for medical device components.
